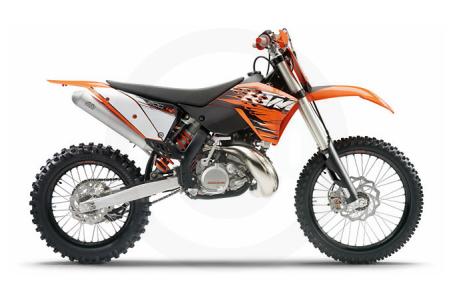

2010 KTM 200 XC-W
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

This easy handling two-stroke off-road bike has an exhaust control system that can be individually tuned thanks to two supplied springs of different hardness allowing riders to easily trim their XC-W engine to ‘soft’ or ‘aggressive’ in a matter of seconds. The factory-fitted ignition curve and an additional softer curve allow the engine characteristics to be perfectly adapted to different courses and riders. These ignition curves can be conveniently activated by either a switch (available as a KTM PowerPart) or by connecting or disconnecting a plug connection.

  • Engine: Single cylinder, 2-stroke
  • Displacement: 193 cc
  • Weight: 94.8 kg (208.99 lbs.)
Engine
  • Engine type: Single cylinder, 2-stroke
  • Displacement: 193 cc
  • Bore x stroke: 64 x 60 mm (2.52 x 2.36")
  • Starter: Kickstarter
  • Transmission: 6 gears wide ratio
  • Carburetor: Keihin PWK 36 S AG
  • Control: TVC twin valve control
  • Lubrication: Mixture oil lubrication 1:60
  • Transmission oil: 15W50
  • Primary drive: 23:73
  • Final drive: 14:48
  • Cooling: Liquid cooled
  • Clutch: Wet multi-disc clutch, operated hydraulically
  • Ignition: Kokusan digital 2K-3
Chassis
  • Frame: Central double-cradle-type 25CrMo4
  • Subframe: Aluminium
  • Handlebar: Neken Aluminium Ø 28/22 mm (1.10/0.87")
  • Front suspension: WP USD Ø 48 mm (1.89")
  • Rear suspension: WP monoshock PDS
  • Suspension travel front/rear: 300/335 mm (11.81/13.19")
  • Front brake: 260 mm (10.24") disc, Brembo double piston
  • Rear brake: 220 mm (8.66") disc, Brembo single piston
  • Rims, front/rear: 1.60 x 21"; 2.15 x 18" Excel
  • Tires, front/rear: 80/100-21"; 110/100-18"
  • Chain: X-ring chain 5/8 x 1/4"
  • Main silencer: Aluminium
  • Steering head angle: 63.5°
  • Wheel base: 1471±10 mm (58.1±0.39")
  • Ground clearance (unloaded): 390 mm (15.35")
  • Seat height: 985 mm (38.78")
  • Tank capacity: approx. 11.5 liters (3.04 gal)
  • Weight (no fuel): approx. 94.8 kg (208.99 lbs)
New Engine Features
  • New exhaust pipe with increased wall thickness for more resistance against damage
  • New radiator cap for better heat stability
  • Transmission received a reinforced 1st gear for durability
New Chassis Features
  • Frame was redesigned with a steeper steering head angle for easier cornering and a better feeling in the front end
  • New suspension valuing and PDS needle design to provide damping slightly earlier in the suspension stroke for a more progressive feel
  • New brake master cylinder and Brembo front brake caliper along with new brake pads for awesome performance and progressive stopping power
  • Redesigned air box with a new shape that helps reduce dirt and water collection
  • New TwinAir filter
  • New DID 520 VT2 X-ring chain for less friction and improved durability
  • New lighter Excel rims
  • New Renthal ‘Diamond’ hand grips

Specifications

Engine
Engine Type Single cylinder, 2-stroke
Displacement 193 cc
Bore and Stroke 64 x 60 mm (2.52 x 2.36 in.)
Cooling Liquid cooled
Ignition Kokusan digital 2K-3
Chassis
Front Suspension WP USD 48 mm (1.89 in.)
Front Brakes 260 mm (10.24 in.) disc, Brembo double piston
Front Tire 80/100-21 in.
Rear Suspension WP monoshock PDS
Rear Brakes 220 mm (8.66 in.) disc, Brembo single piston
Rear Tire 110/100-18 in.
Dimensions
Dry Weight 94.8 kg (208.99 lbs.)
Fuel Capacity 11.5 l (3.04 gal.)
Wheelbase 1471±10 mm (58.1±0.39 in.)
Ground Clearance 390 mm (15.35 in.)
Seat Height 985 mm (38.78 in.)
Rake 63.5 deg.
Transmission
Transmission 6 gears wide ratio
Final Drive 14:48

Compare Models

 Print








Year 2010
Manufacturer KTM
Model 200 XC-W
Style Motocross
MSRP* $6,998.00
Chassis
Front Suspension WP USD 48 mm (1.89 in.)
Front Brakes 260 mm (10.24 in.) disc, Brembo double piston
Front Tire 80/100-21 in.
Rear Suspension WP monoshock PDS
Rear Brakes 220 mm (8.66 in.) disc, Brembo single piston
Rear Tire 110/100-18 in.
Dimensions
Dry Weight 94.8 kg (208.99 lbs.)
Fuel Capacity 11.5 l (3.04 gal.)
Wheelbase 1471±10 mm (58.1±0.39 in.)
Ground Clearance 390 mm (15.35 in.)
Seat Height 985 mm (38.78 in.)
Trail
Rake 63.5 deg.
Engine
Engine Type Single cylinder, 2-stroke
Displacement 193 cc
Bore and Stroke 64 x 60 mm (2.52 x 2.36 in.)
Cooling Liquid cooled
Compression Ratio
Fuel System
Ignition Kokusan digital 2K-3
General
Colors
Warranty
Transmission
Transmission 6 gears wide ratio
Final Drive 14:48
