2010 KTM 400 XC-W
Request a Quote Financing Calculator Request a Brochure Financing Form

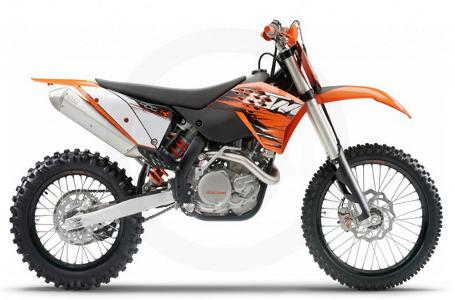

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

The combination of efficient, easy to control engine characteristics and perfect handling make it the ideal all-rounder for all conceivable off-road challenges. Ultra-light titanium valves and DLC-coated cam followers provide minimum moving masses, maximum valve lift and unbeatable durability. The optimized 400 XC-W decompressor system guarantees a perfect start performance. The fully adjustable suspension provides optimal adjustment to the course conditions and the rider’s individual desires.

  • Engine: Single cylinder, 4-stroke, SOHC, 4 valves
  • Displacement: 393.4 cc
  • Weight: 112.2 kg (247.36 lbs)
Engine
  • Engine type: Single cylinder, 4-stroke, SOHC, 4 valves
  • Displacement: 393.4 cc
  • Bore x stroke: 95 x 55.5 mm (3.74 x 2.19")
  • Compression ratio: 11.1:1
  • Starter/Battery: Kickstarter and E-Starter/12V 4Ah
  • Transmission: 6 gears wide-ratio
  • Carburetor: Keihin FCR-MX 39
  • Control: 4 V/OHC with cam levers
  • Lubrication: Pressure lubrication with 2 Eaton pumps
  • Engine lubrication: 10W50
  • Primary drive: 33:76
  • Final drive: 13:52
  • Cooling: Liquid cooled
  • Clutch: Wet multi-disc clutch, operated hydraulically
  • Ignition: Kokusan
Chassis
  • Frame: Central double-cradle-type 25CrMo4
  • Subframe: Aluminium, removable
  • Handlebar: Neken, Aluminium Ø 28/22 mm (1.10/0.87")
  • Front suspension: WP USD Ø 48 mm (1.89")
  • Rear suspension: WP monoshock PDS
  • Suspension travel front/rear: 300/335 mm (11.81/13.19")
  • Front brake: 260 mm (10.24") disc, Brembo double piston
  • Rear brake: 220 mm (8.6") disc, Brembo single piston
  • Rims, front/rear: 1.60 x 21"; 2.15 x 18"
  • Tires, front/rear: 80/100-21"; 110/100-18"
  • Chain: X-ring chain 5/8 x 1/4"
  • Main silencer: Aluminium w /USFS spark arrestor
  • Steering head angle: 63.5°
  • Trail: Adjustable
  • Wheel base: 1475±10 mm (58.07±0.39")
  • Ground clearance (unloaded): 380 mm (15")
  • Seat height: 985 mm (38.78")
  • Tank capacity: approx. 9.2 liters (2.43 gal)
  • Weight (no fuel): approx. 112.2 kg (247.36 lbs)
New Engine Features
  • Reinforced gearbox for improved durability
  • New decompressor spring for easier starting
  • Reworked chain tensioned and chain guide
  • Nitrate hardened compression ring and new design oil control ring
New Chassis Features
  • New frame design that rotates the engine forward slightly and lowers the tank and seating position for improved weight balance, less deflection on the front end, better control of front wheel and an overall lighter feeling
  • New suspension valving and PDS needle design to provide damping slightly earlier in the suspension stroke for a more progressive feel
  • New brake master cylinder and Brembo front brake caliper along with new brake pads for awesome performance and progressive stopping power
  • Redesigned air box with a new shape that helps reduce dirt and water collection
  • New TwinAir filter
  • New DID 520 VT2 X-ring chain for less friction and improved durability
  • New lighter Excel rims
  • New Renthal ‘Diamond’ hand grips

Specifications

Engine
Engine Type Single cylinder, 4-stroke, SOHC, 4 valves
Displacement 393.4 cc
Bore and Stroke 95 x 55.5 mm (3.74 x 2.19")
Cooling Liquid cooled
Compression Ratio 11.1:1
Ignition Kokusan
Chassis
Front Suspension WP USD 48 mm (1.89 in.)
Front Brakes 260 mm (10.24 in.) disc, Brembo double piston
Front Tire 80/100-21 in.
Rear Suspension WP monoshock PDS
Rear Brakes 220 mm (8.6 in.) disc, Brembo single piston
Rear Tire 110/100-18 in.
Dimensions
Dry Weight 112.2 kg (247.36 lbs)
Fuel Capacity 9.2 liters (2.43 gal)
Wheelbase 1475±10 mm (58.07±0.39 in.)
Ground Clearance 380 mm (15 in.)
Seat Height 985 mm (38.78 in.)
Trail Adjustable
Rake 63.5 deg.
Transmission
Transmission 6 gears wide-ratio
Final Drive 13:52

Compare Models

 Print








Year 2010
Manufacturer KTM
Model 400 XC-W
Style Motocross
MSRP* $9,398.00
Chassis
Front Suspension WP USD 48 mm (1.89 in.)
Front Brakes 260 mm (10.24 in.) disc, Brembo double piston
Front Tire 80/100-21 in.
Rear Suspension WP monoshock PDS
Rear Brakes 220 mm (8.6 in.) disc, Brembo single piston
Rear Tire 110/100-18 in.
Dimensions
Dry Weight 112.2 kg (247.36 lbs)
Fuel Capacity 9.2 liters (2.43 gal)
Wheelbase 1475±10 mm (58.07±0.39 in.)
Ground Clearance 380 mm (15 in.)
Seat Height 985 mm (38.78 in.)
Trail Adjustable
Rake 63.5 deg.
Engine
Engine Type Single cylinder, 4-stroke, SOHC, 4 valves
Displacement 393.4 cc
Bore and Stroke 95 x 55.5 mm (3.74 x 2.19")
Cooling Liquid cooled
Compression Ratio 11.1:1
Fuel System
Ignition Kokusan
General
Colors
Warranty
Transmission
Transmission 6 gears wide-ratio
Final Drive 13:52

Current Promotions

There are currently no promotions available for this product.
