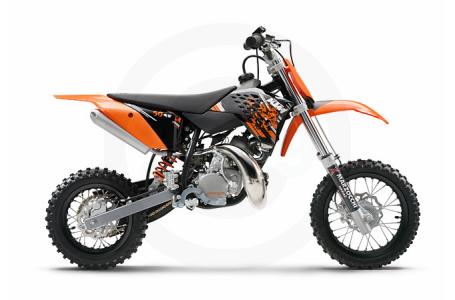

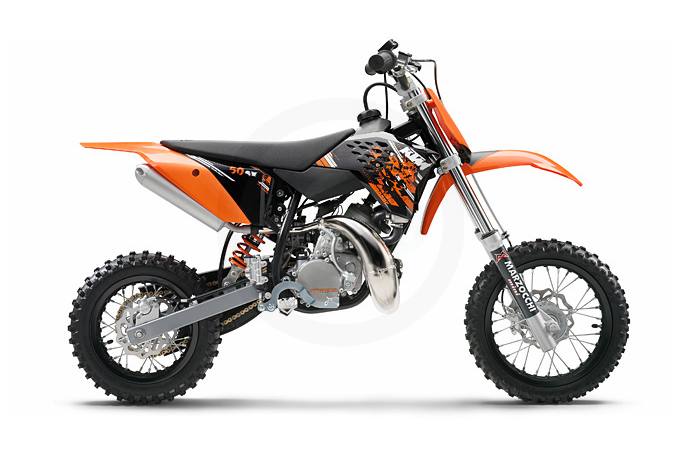

2009 KTM 50 SX
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Engine
    • Engine type: Single cylinder, 2-stroke
    • Displacement: 49 cc
    • Bore x stroke: 39.5 x 40 mm (1.55 x 1.57")
    • Starter: Kickstarter
    • Transmission: Single gear automatic
    • Carburetor: Dell'Orto PHBG 19 BS
    • Engine lubrication: Mixture oil lubrication 1:60
    • Transmission oil: Motorex ATF Super
    • Primary drive: 61:33
    • Final drive: 11:40
    • Cooling: Liquid cooled
    • Clutch: Centrifugal clutch (adjustable)
    • Ignition: Seletra 2p D36
    Chassis
    • Frame: Double grinded central double-cradle-type frame
    • Subframe: Steel
    • Handlebar: Pro Taper, Aluminium Ø 22 mm (0.87")
    • Front suspension: Marzocchi Ø 32 mm (1.26")
    • Rear suspension: WP mono shock
    • Suspension travel front/rear: 185 / 185 mm (7.28" / 7.28")
    • Front brake: Disc brake Ø 160 mm (6.3")
    • Rear brake: Disc brake Ø 140 mm (5.51")
    • Rims, front/rear: 1.5 x 12"; 1.6 x 10" Alu
    • Tires, front/rear: 60/100 x 12"; 2.75 x 10"
    • Chain: 1/2 x 3/16"
    • Main silencer: Aluminium
    • Steering head angle: 66°
    • Wheel base: 1032 mm (40.63")
    • Ground clearance (unloaded): 252 mm (9.92")
    • Seat height: 684 mm (26.93")
    • Tank capacity - approx: 2.3 liters (0.61 gal)
    • Weight (no fuel) - approx: 39.8 kg (87.74 lbs)

    Specifications

    Engine
    Engine Type Single cylinder, 2-stroke
    Displacement 49 cc
    Bore and Stroke 39.5 x 40 mm (1.55 x 1.57 in.)
    Cooling Liquid cooled
    Fuel System Dell'Orto PHBG 19 BS
    Ignition Seletra 2p D36
    Chassis
    Front Suspension Marzocchi Ø 1.26 in. (32 mm); Travel: 7.28 in. (185 mm)
    Front Brakes Disc brake Ø 6.3 in. (160 mm)
    Front Tire 60/100 x 12 in.
    Rear Suspension WP mono shock; Travel: 7.28 in. (185 mm)
    Rear Brakes Disc brake Ø 5.51 in. (140 mm)
    Rear Tire 2.75 x 10 in.
    Dimensions
    Dry Weight 87.74 lbs (39.8 kg)
    Fuel Capacity 0.61 gal (2.3 l)
    Wheelbase 40.63 in. (1032 mm)
    Ground Clearance 9.92 in. (252 mm)
    Seat Height 26.93 in. (684 mm)
    Rake 66°
    Transmission
    Transmission Single gear automatic
    Final Drive 11:40

    Compare Models

    		 Print








    Year 2009
    Manufacturer KTM
    Model 50 SX
    Style Youth
    MSRP* $3,698.00
    Chassis
    Front Suspension Marzocchi Ø 1.26 in. (32 mm); Travel: 7.28 in. (185 mm)
    Front Brakes Disc brake Ø 6.3 in. (160 mm)
    Front Tire 60/100 x 12 in.
    Rear Suspension WP mono shock; Travel: 7.28 in. (185 mm)
    Rear Brakes Disc brake Ø 5.51 in. (140 mm)
    Rear Tire 2.75 x 10 in.
    Dimensions
    Dry Weight 87.74 lbs (39.8 kg)
    Fuel Capacity 0.61 gal (2.3 l)
    Wheelbase 40.63 in. (1032 mm)
    Ground Clearance 9.92 in. (252 mm)
    Seat Height 26.93 in. (684 mm)
    Trail
    Rake 66°
    Engine
    Engine Type Single cylinder, 2-stroke
    Displacement 49 cc
    Bore and Stroke 39.5 x 40 mm (1.55 x 1.57 in.)
    Cooling Liquid cooled
    Compression Ratio
    Fuel System DellOrto PHBG 19 BS
    Ignition Seletra 2p D36
    General
    Colors
    Warranty
    Transmission
    Transmission Single gear automatic
    Final Drive 11:40
