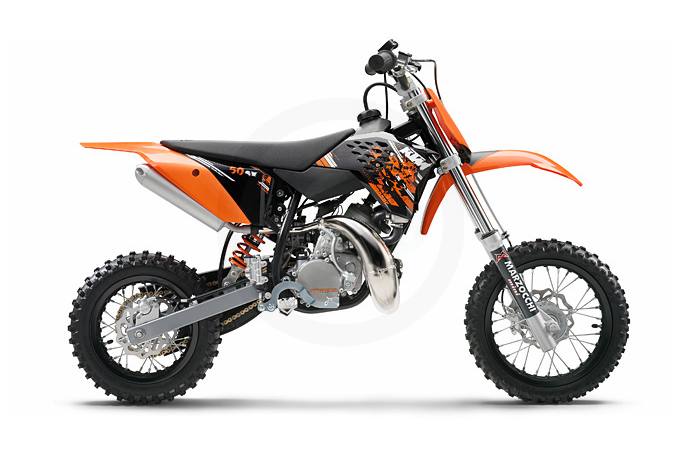

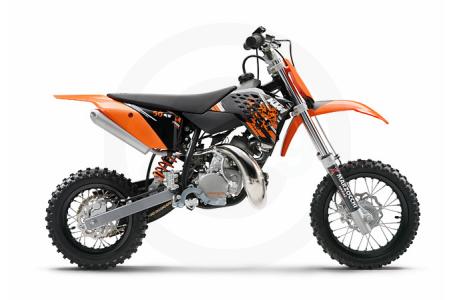

2009 KTM 50 SX Junior
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Your success story starts here.


Just a normal day in the life of a future champion. Throw everyday life out the window, grab your kit and get out on your KTM 50 SX Junior. Away to offroad enjoyment – the training track awaits. Plough through the countryside, scatter the gravel and inhale that racing feeling. Because the next race weekend is coming – and that means your next win!

    Engine
    • Engine type: Single cylinder, 2-stroke
    • Displacement: 49 cc
    • Bore x stroke: 39.5 x 40 mm (1.55 x 1.57")
    • Starter: Kickstarter
    • Carburetor: Dell'Orto PHVA 14 DS
    • Engine lubrication: Mixture oil lubrication 1:60
    • Transmission oil: Motorex ATF Super
    • Primary drive: 61:33
    • Final drive: 11:40
    • Cooling: Liquid cooled
    • Clutch: Centrifugal clutch (adjustable)
    • Ignition: Seletra analog
    Chassis
    • Frame: Double grinded central-double-cradle-type frame
    • Subframe: Steel
    • Handlebar: Pro Taper, Aluminium Ø 22 mm (0.87")
    • Front suspension: Marzocchi Ø 32 mm (1.26")
    • Rear suspension: WP mono shock
    • Suspension travel front/rear: 140 / 205 mm (5.51" / 8.07")
    • Front brake: Disc brake Ø 160 mm (6.3")
    • Rear brake: Disc brake Ø 140 mm (5.51")
    • Rims, front/rear: 1.6 x 10"; 1.6 x 10" Alu
    • Tires, front/rear: 2.50 x 10"; 2.75 x 10"
    • Chain: 1/2 x 3/16"
    • Main silencer: Aluminium
    • Steering head angle: 67.4°
    • Wheel base: 910 mm (35.83")
    • Ground clearance (unloaded): 220 mm (8.66")
    • Seat height: 607 mm (23.9")
    • Tank capacity: approx. 2.3 liters (0.61 gal)
    • Weight (no fuel): approx. 37.6 kg (82.89 lbs)

    Specifications

    Engine
    Engine Type Single cylinder, 2-stroke
    Displacement 49 cc
    Bore and Stroke 39.5 x 40 mm (1.55 x 1.57 in.)
    Cooling Liquid cooled
    Fuel System Dell'Orto PHVA 14 DS
    Ignition Seletra analog
    Chassis
    Front Suspension Marzocchi Ø 1.26 in. (32 mm); Travel: 5.51 in. (140 mm)
    Front Brakes Disc brake Ø 6.3 in. (160 mm)
    Front Tire 2.50 x 10 in.
    Rear Suspension WP mono shock; Travel: 8.07 in. (205 mm)
    Rear Brakes Disc brake Ø 5.51 in. (140 mm)
    Rear Tire 2.75 x 10 in.
    Dimensions
    Dry Weight 82.89 lbs (37.6 kg)
    Fuel Capacity 0.61 gal (2.3 l)
    Wheelbase 35.83 in. (910 mm)
    Ground Clearance 8.66 in. (220 mm)
    Seat Height 23.9 in. (607 mm)
    Rake 67.4°
    Transmission
    Final Drive 11:40

    Compare Models

    		 Print








    Year 2009
    Manufacturer KTM
    Model 50 SX Junior
    Style Youth
    MSRP* $3,498.00
    Chassis
    Front Suspension Marzocchi Ø 1.26 in. (32 mm); Travel: 5.51 in. (140 mm)
    Front Brakes Disc brake Ø 6.3 in. (160 mm)
    Front Tire 2.50 x 10 in.
    Rear Suspension WP mono shock; Travel: 8.07 in. (205 mm)
    Rear Brakes Disc brake Ø 5.51 in. (140 mm)
    Rear Tire 2.75 x 10 in.
    Dimensions
    Dry Weight 82.89 lbs (37.6 kg)
    Fuel Capacity 0.61 gal (2.3 l)
    Wheelbase 35.83 in. (910 mm)
    Ground Clearance 8.66 in. (220 mm)
    Seat Height 23.9 in. (607 mm)
    Trail
    Rake 67.4°
    Engine
    Engine Type Single cylinder, 2-stroke
    Displacement 49 cc
    Bore and Stroke 39.5 x 40 mm (1.55 x 1.57 in.)
    Cooling Liquid cooled
    Compression Ratio
    Fuel System DellOrto PHVA 14 DS
    Ignition Seletra analog
    General
    Colors
    Warranty
    Transmission
    Transmission
    Final Drive 11:40

    Current Promotions

    There are currently no promotions available for this product.
